It is sometimes useful to extract the mass and stiffness matrix from Ansys.

*SMAT, MatK, D, IMPORT, FULL, file.full, STIFF

*PRINT, matk, matk, txt

Exporting mass matrix would be similar:

*SMAT, MatM, D, import, full, file.full, MASS

The above script uses APDL Math to get the job done. (Please see previous post for another example). The ordering of the matrix is unfortunately not concurrently exported. To verify the sequencing is as expected, we will work to replicate a truss example in the Finite Element Trusses course notes by Bob Greenlee.

Script to create model:

/prep7

!! Creates Model to reflect course notes

! Properties

et,1,1

mp, ex, 1, 29.5e6

r, 1, 1

! Geometry

n,1 $ n,2, 40 $ n,3, 40, 30 $ n,4, 0, 30

e,1,2 $ e,2,3 $ e,1,3 $ e,3,4

! Boundary Conditions

d,1,ux,0 $ d,1,uy,0

d,2,uy,0

d,4,ux,0 $ d,4,uy,0

f,2,fx,20e3

f,3,fy,-25e3

! solves

/solu

eqslv, sparse

wrfull, 1

solve

finish

save

With the

! Gets Stiffness Matrix

*SMAT, MatK, D, import, full, file.full, stiff

*SMAT, Nod2Bcs, D, import, full, file.full,NOD2BCS

*print, MatK, matk.txt ! Exports Stiffness to Text File

*export, MatK, mmf, matkMMF.txt ! Exports Stiffness as MMF format

Here's the MatK matrix printed out. Note it is is both sparse and assumed symmetric.

This compares favorably to the course notes:

Despite having 4 nodes with UX and UY (total of 8 DOF), there are only 3 DOF here because the boundary condition equations were removed leaving DOF # 3, 5 and 6. In this case the ordering was in sequence but the Degree of Freedom Ordering Documentation states that the ordering may be optimized for solving.

The node numbering we use in APDL is

*VEC,MapForward,I,IMPORT,FULL,file.full,FORWARD

*dim, Xint,, MAPFORWARD_ROWDIM*MAPFORWARD_NUMDOF

cto=0

*do, EUnodeNumber, 1, MAPFORWARD_ROWDIM

*do, dofdir, 1, MAPFORWARD_NUMDOF

j = MapForward(EUnodeNumber)

cto=cto+1

Xint(cto) = (j-1)*MAPFORWARD_NUMDOF+dofdir

*enddo

*enddo

Next, another mapping vector was multiplied to get

*VEC, Xxint, d, import, apdl, Xint ! from previous equivalence

*MULT, Nod2Bcs,, Xxint,, Xbcs ! X of BCS ordering

*PRINT, Xbcs ! Indexing of BCS (see output window)

That gets us the Xbcs ordering (Figure 4) which reflects the DOF subscript in Figure 3.

To continue solving the FE problem in APDL Math, the equations are solved with results identical to the course notes:

*VEC,vRHS,D,IMPORT,FULL,file.full,RHS

*LSENGINE,BCS,MyBcsSolver,MatK

*LSFACTOR,MyBcsSolver

*DMAT,VecX,D,COPY,vRHS

*LSBAC,MyBcsSolver,vRHS,VecX

*PRINT, VecX

APDL Math allows us to manipulate the internal matrix and vectors quite effectively once some familiarity was established. Depending on the task at hand, it may be worth while doing the calculation inside Ansys with APDL Math instead of exporting and calculating it externally in Matlab/Octave or Python etc.

Speaking of Python, I came across pyansys by Alex Kaszynski which exports the K and M matrix and it's corresponding node and degree of freedom. Unfortunately my attempt had an error of ValueError. If anyone else is able to get it to work, please let me know in the comments section. Thanks!

APDL script of the above project: WriteStiffness.inp

*SMAT, MatK, D, IMPORT, FULL, file.full, STIFF

*PRINT, matk, matk, txt

Exporting mass matrix would be similar:

*SMAT, MatM, D, import, full, file.full, MASS

The above script uses APDL Math to get the job done. (Please see previous post for another example). The ordering of the matrix is unfortunately not concurrently exported. To verify the sequencing is as expected, we will work to replicate a truss example in the Finite Element Trusses course notes by Bob Greenlee.

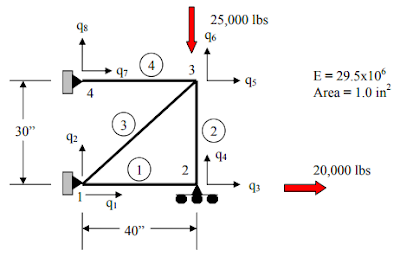

Figure 1: Truss Problem Setup

**Model Creation**Script to create model:

/prep7

!! Creates Model to reflect course notes

! Properties

et,1,1

mp, ex, 1, 29.5e6

r, 1, 1

! Geometry

n,1 $ n,2, 40 $ n,3, 40, 30 $ n,4, 0, 30

e,1,2 $ e,2,3 $ e,1,3 $ e,3,4

! Boundary Conditions

d,1,ux,0 $ d,1,uy,0

d,2,uy,0

d,4,ux,0 $ d,4,uy,0

f,2,fx,20e3

f,3,fy,-25e3

! solves

/solu

eqslv, sparse

wrfull, 1

solve

finish

save

/aux2

combine, full ! combines all file*.full into file.full

finish**Extract & Export Stiffness Matrix**

With the

**file.full**file of the FEM model created, let's now export the stiffness matrix to both a text file and MMF file format.

! Gets Stiffness Matrix

*SMAT, MatK, D, import, full, file.full, stiff

*SMAT, Nod2Bcs, D, import, full, file.full,NOD2BCS

*print, MatK, matk.txt ! Exports Stiffness to Text File

*export, MatK, mmf, matkMMF.txt ! Exports Stiffness as MMF format

Figure 2: Stiffness Matrix

This compares favorably to the course notes:

Figure 3: Course Notes Values

**DOF Ordering**

Despite having 4 nodes with UX and UY (total of 8 DOF), there are only 3 DOF here because the boundary condition equations were removed leaving DOF # 3, 5 and 6. In this case the ordering was in sequence but the Degree of Freedom Ordering Documentation states that the ordering may be optimized for solving.

The node numbering we use in APDL is

**User Ordering.**To convert that to

**Internal Ordering**that removes unused node number and optimized reordering, we use the FORWARD nodal vector mapping. Here's my interpretation of mapping the 4 sequential nodes into

**Internal Ordering**.

*VEC,MapForward,I,IMPORT,FULL,file.full,FORWARD

*dim, Xint,, MAPFORWARD_ROWDIM*MAPFORWARD_NUMDOF

cto=0

*do, EUnodeNumber, 1, MAPFORWARD_ROWDIM

*do, dofdir, 1, MAPFORWARD_NUMDOF

j = MapForward(EUnodeNumber)

cto=cto+1

Xint(cto) = (j-1)*MAPFORWARD_NUMDOF+dofdir

*enddo

*enddo

Next, another mapping vector was multiplied to get

**BCS Ordering**from

**Internal Ordering**.

*VEC, Xxint, d, import, apdl, Xint ! from previous equivalence

*MULT, Nod2Bcs,, Xxint,, Xbcs ! X of BCS ordering

*PRINT, Xbcs ! Indexing of BCS (see output window)

That gets us the Xbcs ordering (Figure 4) which reflects the DOF subscript in Figure 3.

Figure 4: Xbcs index

**Solving for Displacements**

To continue solving the FE problem in APDL Math, the equations are solved with results identical to the course notes:

*VEC,vRHS,D,IMPORT,FULL,file.full,RHS

*LSENGINE,BCS,MyBcsSolver,MatK

*LSFACTOR,MyBcsSolver

*DMAT,VecX,D,COPY,vRHS

*LSBAC,MyBcsSolver,vRHS,VecX

*PRINT, VecX

Figure 5: Solved Displacement

**Conclusions**

APDL Math allows us to manipulate the internal matrix and vectors quite effectively once some familiarity was established. Depending on the task at hand, it may be worth while doing the calculation inside Ansys with APDL Math instead of exporting and calculating it externally in Matlab/Octave or Python etc.

Speaking of Python, I came across pyansys by Alex Kaszynski which exports the K and M matrix and it's corresponding node and degree of freedom. Unfortunately my attempt had an error of ValueError. If anyone else is able to get it to work, please let me know in the comments section. Thanks!

**Addendum**

APDL script of the above project: WriteStiffness.inp

Post on creating a user defined ansys superelement *sub: link

pyansys seems to be very limited at this stage but I do realize it's future potential. It can only deal with the following element types- '45', '95', '185', '186', '92', '187'
